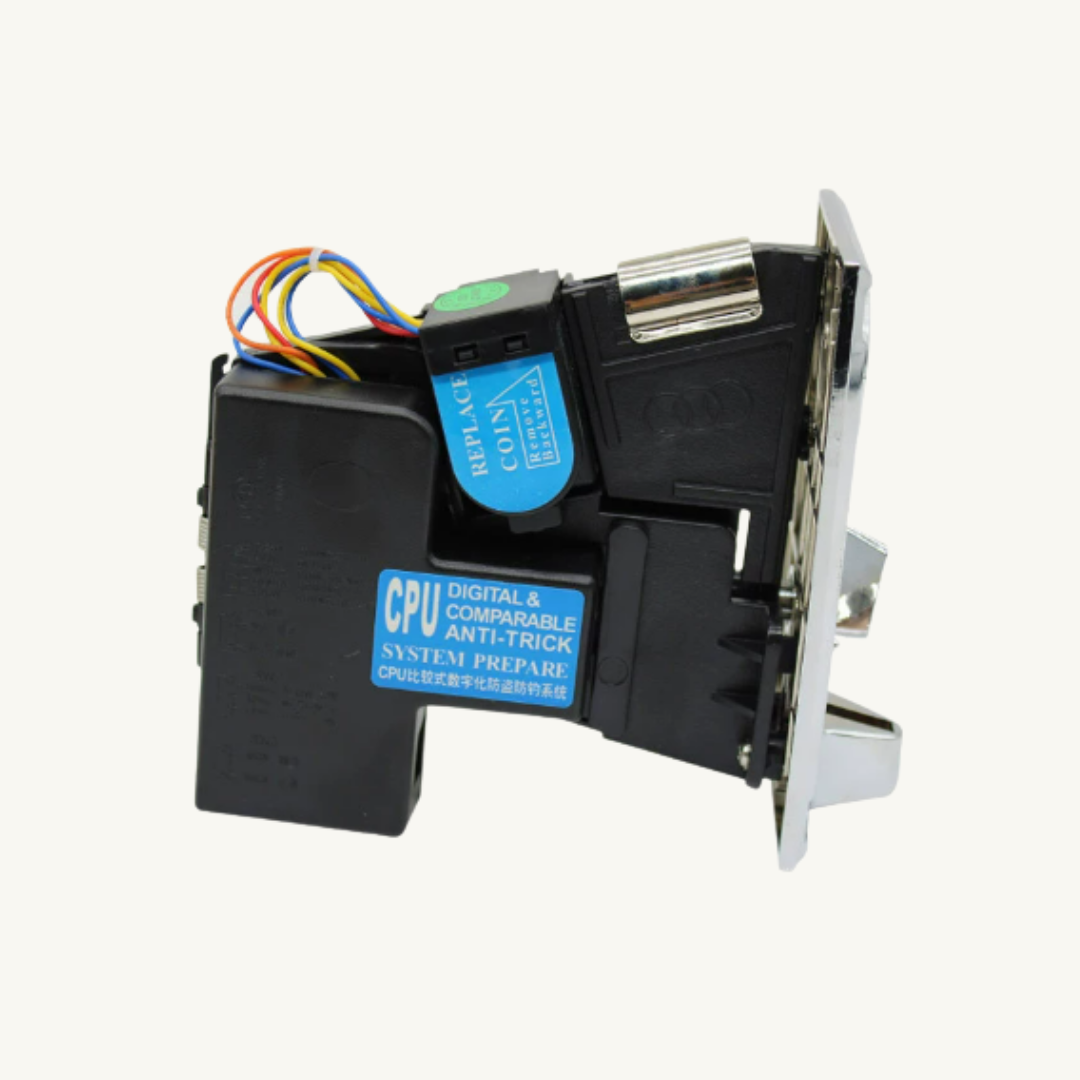

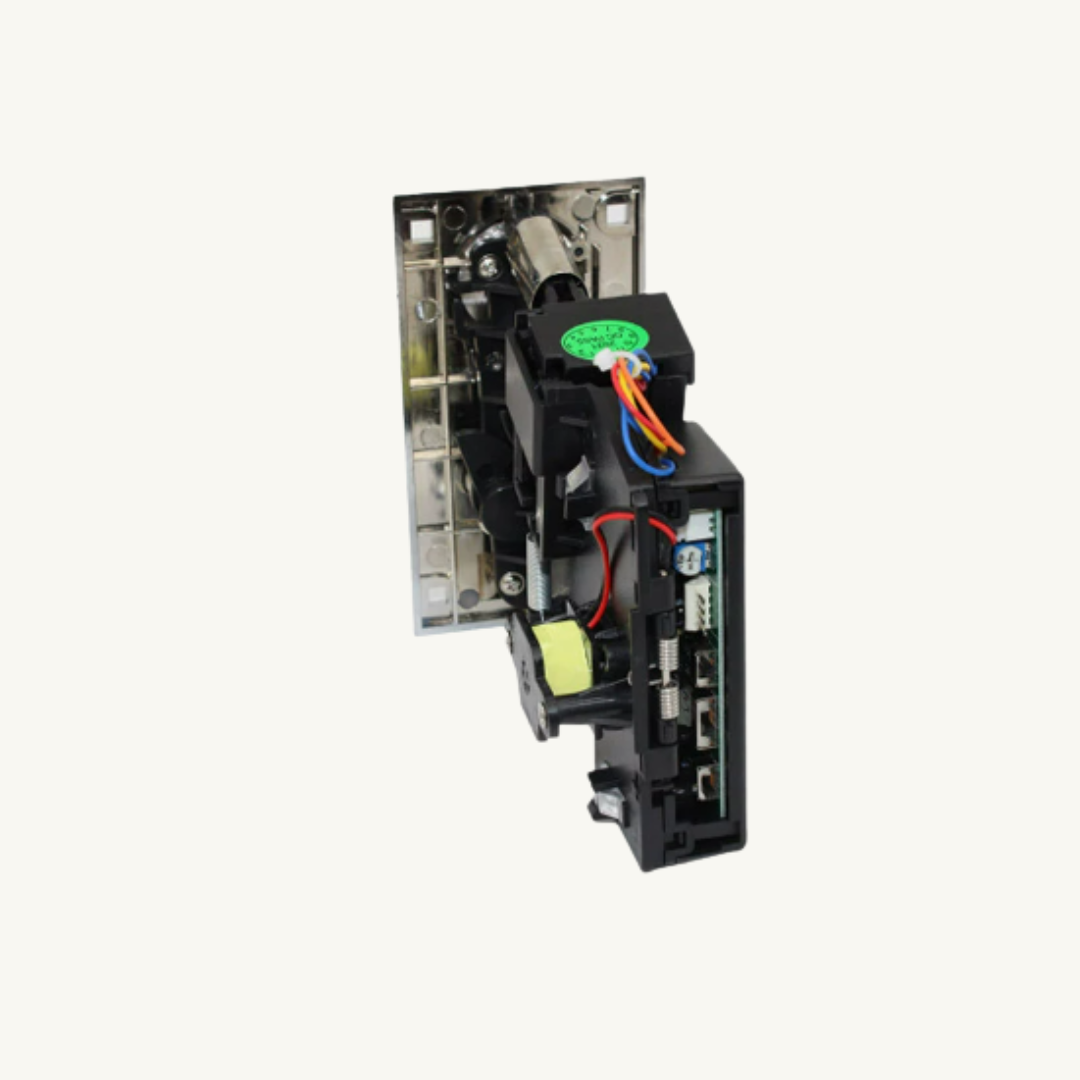

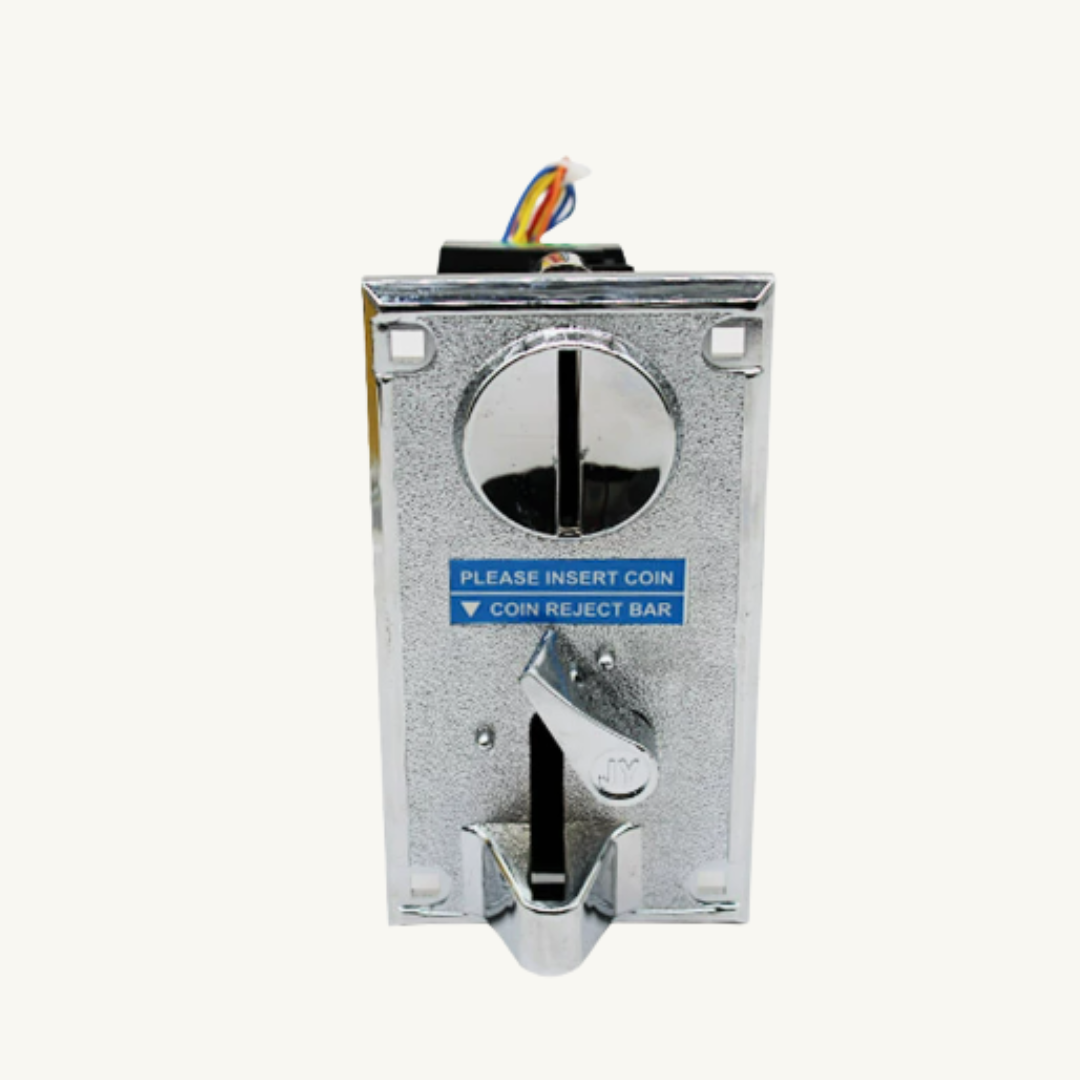

Intelligent coin acceptor, CPU comparative coin acceptor, enhanced comparative coin acceptor.
CPU program control, accurate scoring, unique anti-electromagnetic interference program
Instructions for use:
Applicable coin diameter: 20mm～28mm
Appropriate coin thickness: 1.7mm～2.2mm
Working voltage: DC12V±20%
Working current: 60mA±5%—1.3A±10%
Working temperature: -15 degrees ~ +1. Please remove the plastic coins in the coin slot and replace them with the coins you want to use;
2. According to the needs of the circuit board, select the switching between N.O (normally open) and N.C (normally closed) (Mary is usually N.C, and most game consoles are N.O) (SW1) 4. Select the length and speed of the CDIN signal. switch (SW2). CPU comparison coin acceptor, enhanced type
Features:
1. Used in various tokens.
2. CUP program control, accurate scoring.
3. Built-in anti-electromagnetic interference program.
4. Specially designed precision/normal gear to make coin input smoother.
5. Flip-top design completely solves the problem of card blockage.
Coin operated machine Smart single coin acceptor
Single Coin acceptor CPU comtrol for coin operated machine
